What is Nitrogen?

Nitrogen is a chemical element with the symbol N, the atomic number of 7, and the atomic mass of 14. It can occur in a diatomic molecular form (N 2) as a colourless gas and be a part of a liquid or solid compound. About 78% of the Earth's atmosphere is composed of a gaseous form of nitrogen making it the most abundant uncombined element.

During the nitrogen cycle, nitrogen moves from the atmosphere, into the biosphere (in organic compounds), then back into the atmosphere. Complex organisms need nitrogen to build essential molecules like amino acids (and thus proteins), nucleic acids (DNA and RNA) and adenosine triphosphate (ATP - energy transfer molecule).

Because plants cannot use gaseous nitrogen, they rely on nitrogen fixing bacteria in the soil to convert it to ammonia and nitrite. Nitrate-forming bacteria convert nitrite into nitrate under aerobic conditions. Nitrate represents the most completely oxidised state of nitrogen.

Nitrification and Denitrification

Nitrification is the two-step biological oxidation of ammonia to nitrite and finally nitrate. Denitrification is a microbially facilitated process during which nitrate is reduced to ultimately produce molecular nitrogen.

Nitrification/denitrification is most widely used in wastewater treatment processes. In these processes, different conditions in oxic (aerobic) and anoxic zones of wastewater treatment are used by autotrophic bacteria such as nitrosomonas, or heterotrophic bacteria such as nitrobacter to convert ammonia, nitrite and nitrate to nitrogen gas.

Oxygen control is critical to nitrification among other important factors such as alkalinity. Dissolved oxygen (DO) must be monitored and managed during nitrification. Effective denitrification relies on the lack of dissolved oxygen and an appropriate amount of readily degradable carbon.

Total Kjeldahl Nitrogen

The term total Kjeldahl nitrogen refers to the combination of ammonia and organic nitrogen. However, it does not include nitrite-nitrogen or nitrate-nitrogen.

Total Nitrogen

Total nitrogen is the sum of all the different forms of nitrogen present in the water, including ammonia and organically bonded nitrogen (total Kjeldahl nitrogen), as well as nitrite and nitrate.

Ammonia & Ammonium

Ammonia and ammonium have a pH and temperature-specific relationship.

Water Treatment

Ammonia’s corrosive properties (in gaseous form and concentrated solutions) can cause mild eye or skin irritation to chemical burning depending on the concentration. Additionally, at even low levels ammonia can cause aesthetic problems like objectionable taste or odour.

Wastewater Treatment

Ammonia is toxic to aquatic life even at very low concentrations. Wastewater facilities discharge treated water into a wide variety of locations. Most treatment plants discharge into receiving waters that have specific designated uses and aquatic life. The combination of these determines the level of ammonia that can safely be discharged from a wastewater treatment plant.


Shop Now

Why Measure Nitrogen?

While nitrogen in the form of ammonia, nitrite and nitrate is an essential nutrient for plants and animals, excess nitrogen can be detrimental in many cases.

  • In bodies of water, high concentrations of nitrogen can cause depletion of DO and thus negatively affect aquatic life.
  • Drinking water containing excess nitrogen in the form of ammonia or nitrate can pose public health risks. Furthermore, changes in nitrite concentrations in drinking water distribution systems can indicate the onset of nitrification, which compromises water quality.
  • In wastewater treatment, high concentrations of ammonia in conjunction with elevated pH can be toxic to sludge digestion microbes.

At Hach ®, find the testing equipment, resources, training and software you need to successfully monitor and manage nitrogen levels in your specific process application.



LCK

Featured Products to Measure Nitrogen

Orbisphere 51x Nitrogen Controllers

The Orbisphere ® 51x controller using Orbisphere ® thermal conductivity sensors provide precise, selective and reliable measurements of N 2.

Learn More

Orbisphere 315xx Nitrogen Sensors

The unique Orbisphere ® Thermal Conductivity sensor has been developed to give continuous N 2 measurements in gas phase or dissolved in a liquid.

Learn More

EZ Series Total Nitrogen Analysers

The EZ Series Online Analyzers offer multiple options to monitor total nitrogen in water.

Learn More

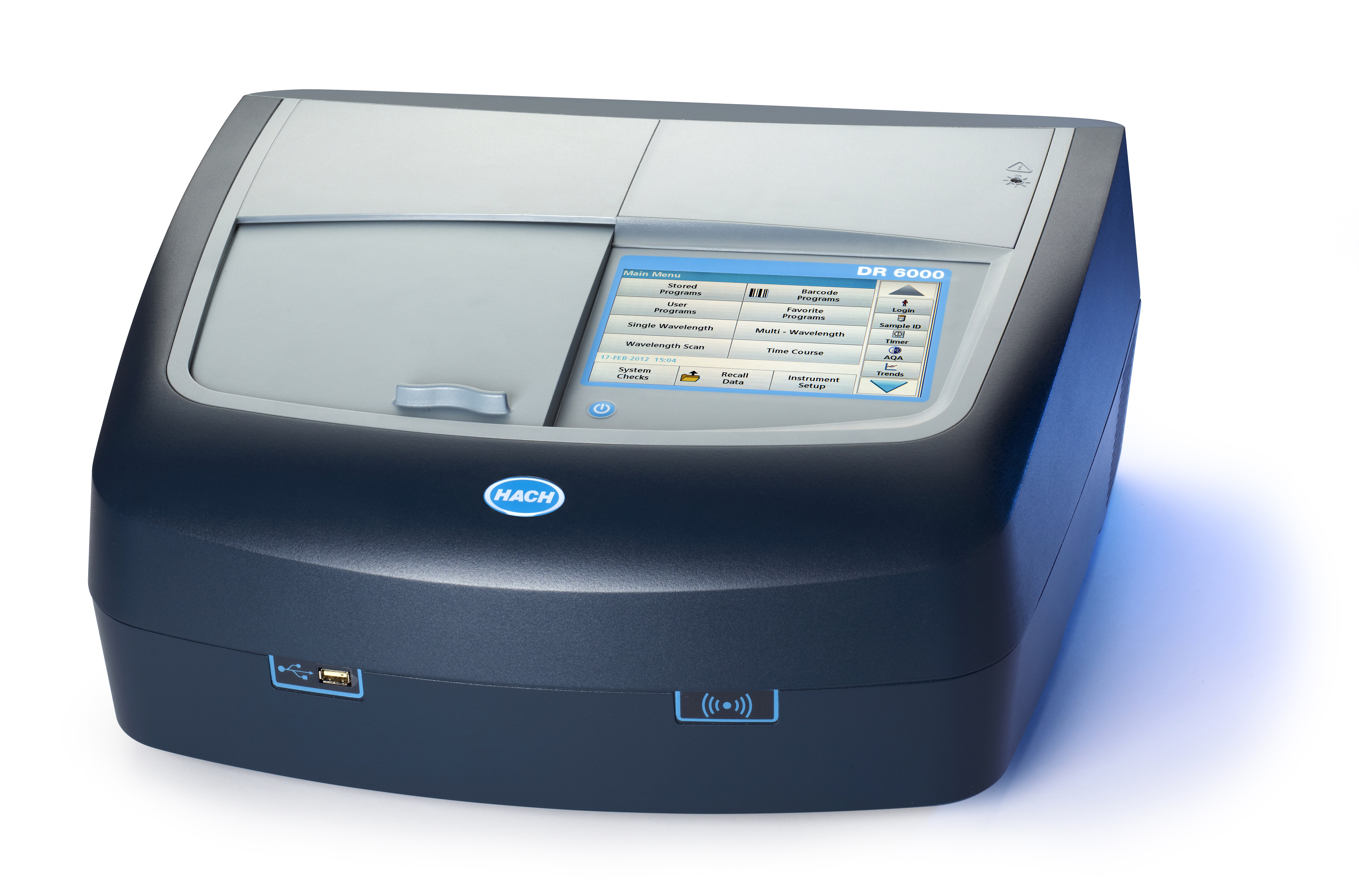

Spectrophotometers

Hach creates solutions that make your daily routine testing easier.

Learn More

Hach BioTector B7000 TOC/TN/TP Analyser

A single analyzer for carbon contamination and nitrogen/phosphorus nutrient levels in water.

Learn More

Chemistries, Reagents and Standards

Hach is dedicated to providing high-quality reagents for routine and challenging water analysis.

Learn More

Digital Thermostats

The Hach digital termostats is designed to save time and ensure accuracy during testing.

Learn More



Which Processes Require Nitrogen Monitoring?

Surface Water, Blended Water and Ground Water

Ammonia, nitrite and nitrate may naturally occur in bodies of water or be present due to fertiliser runoff, animal waste runoff, failing septic systems, blending with chloraminated water or industrial discharges containing corrosion inhibitors. Therefore, it is important to monitor ammonia, nitrite and nitrate levels in order to guide and optimise treatment.

A turquoise pool of water shimmers in a cave. Groundwater sources often have nitrogen naturally occurring in the form of ammonia, nitrite and nitrate.

Drinking Water Treatment

When ammonia is not used during disinfection, its presence in a distribution system may indicate leaching from materials used in the pipework construction or water contamination due to damage in the system. When unwanted ammonia combines with chlorine, it diminishes the disinfection strength of chlorination.

When ammonia is used for disinfection in the chloramination process, its levels must be monitored and managed to safeguard public health.

This water treatment facility uses ammonia, a source of nitrogen in disinfection.

Aquaculture

As a waste product of aquatic life, ammonia can be toxic to fish and aquatic plants at levels as low as 0.5 mg/L. In established aquariums, ammonia can be rapidly converted to nitrite and eventually nitrate. Most aquariums aim to have zero ammonia present.

In natural aquatic environments, high ammonia levels can result in excess algae growth that blocks sunlight, impairing sight-feeding and photosynthesis.

Aquaculture net pens hold farmed seafood. A byproduct of farming is ammonia can also be toxic to fish.

Agriculture

Nitrogen in the form of ammonia is used by plants to create essential organic molecules needed by complex organisms. To aid or enhance this natural process (which is part of the nitrogen cycle), ammonia is often added to fertilisers. For example, hydroponic nutrient solutions introduce nitrogen as an ammonia salt. Ammonia can also be present in soil due to urea dosing.

A farm tractor fertilises crops introducing nitrogen in the form of ammonia.

Pharmaceutical Manufacturing

In pharmaceutical production, ammonia solution is used to regenerate weak anion exchange resins and adjust pH of the process water.

Pharmaceuticals use ammonia solution to regenerate weak anion exchange resins. Ammonia is a source of nitrogen.

Wastewater Treatment

Total nitrogen methods measure nitrogen loads on influent streams, at intermediate stages of water treatment for sludge, and on effluent to gauge overall treatment plant efficiency. Assessing nitrogen levels allows process monitoring, adjustment and nitrogen reduction efficiency throughout the treatment.

Typical ammonia levels in raw municipal wastewater range from 30 mg/L - 50 mg/L NH 3 -N. Nitrate levels indicate the stage of conversion of ammonia and organic nitrogen forms to nitrate by the aerobic biological treatment steps during nitrification.

A wastewater equalisation tank monitors total nitrogen from influent waters during intermediate stages of water sludge treatment.

Sludge Retention Time

A correct sludge retention time (SRT) and MLSS level in the aeration basin are fundamental for compliance and energy efficient treatment to ensure stable nitrification.

Sludge treatment in this aeration basin starts nitrification of ammonia. Monitoring nitrogen here provides compliance and energy efficient treatment.

How is Total Nitrogen Monitored?


Hach Nitrogen-Ammonia Reagent Set, TNT, AmVer (Salicylate), Low Range

Titanium Chloride Reduction Method (Total Inorganic Nitrogen)

Titanium (III) ions reduce nitrate and nitrite to ammonia in a basic environment. After centrifugation to remove solids, the ammonia is combined with chlorine to form monochloramine. Monochloramine reacts with salicylate to form 5-aminosalicylate (a green solution), as in the salicylate method in ammonia nitrogen (see nitrogen and ammonia).

Benchtop:

Total Inorganic Nitrogen


Hach Nitrogen (Total) TNTplus Vial Test, LR (1-16 mg/L N), 25 Tests

Persulfate Digestion Method (Total Nitrogen)

An alkaline persulfate digestion converts all forms of nitrogen to nitrate. Sodium metabisulfite is added after the digestion to eliminate interferences from halogen oxides. Under strongly acidic conditions, nitrate reacts with chromotropic acid to nitrate the biphenyl rings at several locations, forming several nitrated products. The nitrated products are measured at 410 nm.

Benchtop/Portable:

Nitrogen, total, TNT, 0.5-25 mg/L N

Nitrogen, total, TNT, 10-150 mg/L N

Inorganic and organic nitrogen compounds are digested with peroxodisulfate and oxidized to nitrate. The nitrate ions react with 2,6-dimethylphenol in a solution of sulfuric and phosphoric acid to form a nitrophenol. The measurement wavelength is 345 nm.

Benchtop:

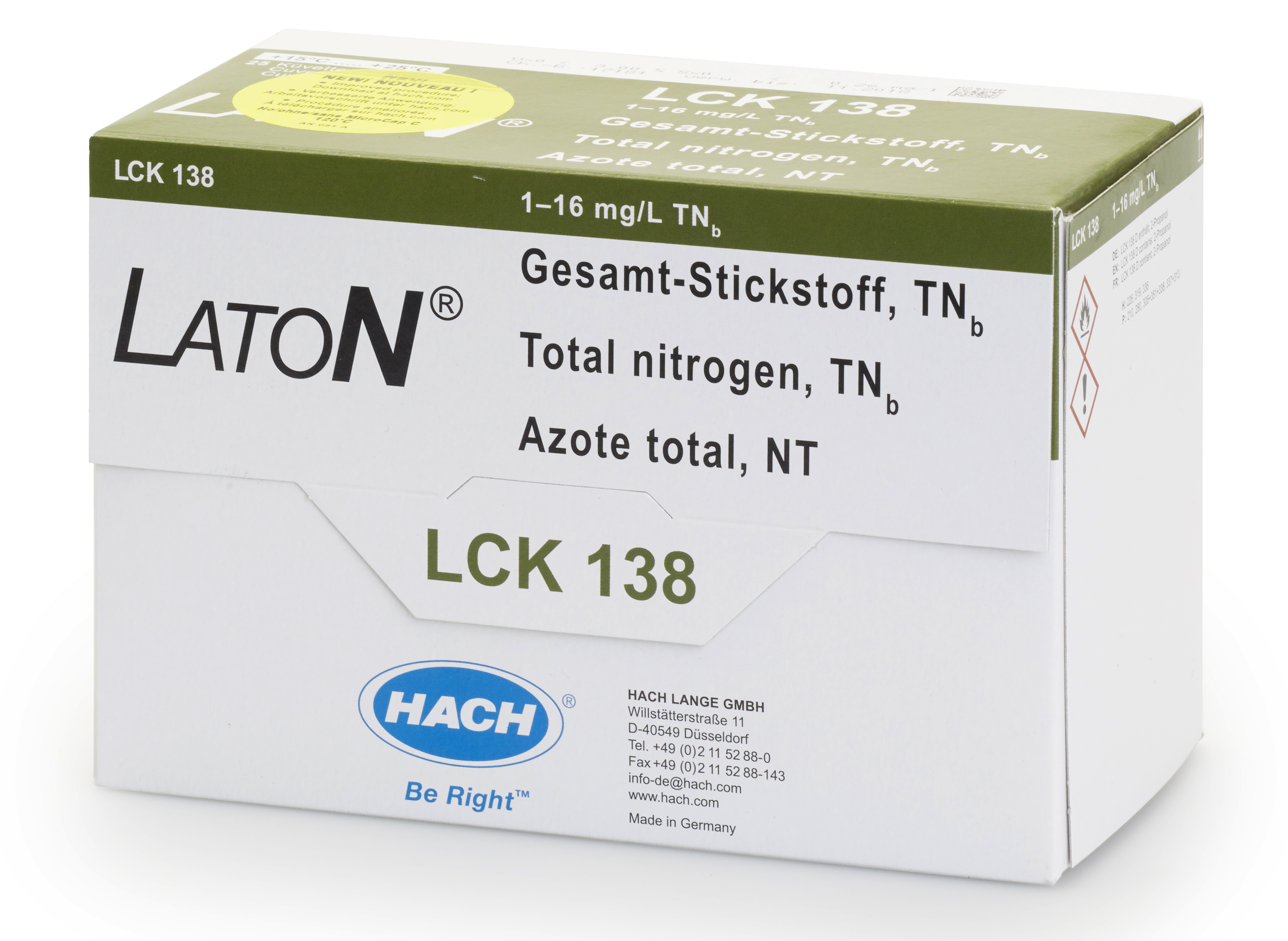

LCK138 Laton Total Nitrogen cuvette test 1-16 mg/L TN, 25 tests

LCK238 Laton Total Nitrogen cuvette test 5-40 mg/L TN, 25 tests

LCK338 Laton Total Nitrogen cuvette test 20-100 mg/L TN, 25 tests

LCK438 Laton Total Nitrogen cuvette test 100-250 mg/L TN, 25 tests

Inorganic and organic nitrogen compounds are digested with peroxydisulfate and oxidized to nitrate. The nitrate is reduced to nitrite by adding a reducing reagent. The nitrite reacts in an acidic medium with the color reagent to produce a violet azo complex. The measurement wavelength is 546 nm.

Online:

EZ Series Total Nitrogen Analysers

Two-stage advanced oxidation process using hydroxyl radicals. Direct photometric analysis of nitrate after oxidation.

Online:

Hach BioTector B7000 TOC/TN/TP Analyser



To learn more about monitoring other forms of nitrogen, visit these related parameter pages: ammonia & ammonium, nitrate & nitrite.

Frequently Asked Questions

What TN ranges are offered on the EZ Series Analysers?

The EZ Series online analysers offer multiple options to monitor total nitrogen in water. Typical applications are wastewater and surface water.

  • EZ7700 Nitrogen, total, 0.1 - 2 mg/L
  • EZ7701 Nitrogen, total, 0.2 - 5 mg/L
  • EZ7702 Nitrogen, total, 0.25 - 10 mg/L
  • EZ7703 Nitrogen, total, 0.5 - 20 mg/L

EZ Series also offer combination TN/TP Analysers:

  • EZ7600 Nitrogen, total, 0.05 - 2 mg/L & Phosphorus, total, 0.01 - 1 mg/L
  • EZ7601 Nitrogen, total, 0.1 - 5 mg/L & Phosphorus, total, 0.02 - 2 mg/L
  • EZ7602 Nitrogen, total 0.2 - 10 mg/L & Phosphorus, total, 0.05 - 5 mg/L
  • EZ7603 Nitrogen, total 0.5 - 50 mg/L & Phosphorus, total, 0.05 - 10 mg/L
    EZ Series can also be configured to measure TN, NO 3 and NO 2:
    EZ7750 Nitrogen, total, 0.1 - 2 mg/L & Nitrate, 5 - 600 µg/L & Nitrite, 10 - 800 µg/L

What is the relationship between the nitrogen containing compounds?

Provided below is a summary of the relationship between different nitrogen compounds and the nitrogen method recommended for analysis:

(TIN) = (NH 3) + (NO 3 -) + (NO 2 -)

(TN) = Organic Nitrogen (all) + NH 3 + NO 3 - + NO 2 -

(TKN) = Organic Nitrogen (trinegative oxidative*) + NH 3

*Trinegative oxidative: Will not account for azide, azine, azo, hydrazone, nitrile, nitro, nitroso, oxime, and semi-carbazone

Comparing TKN results

TKN = (approx.) TN - (NO 3 - + NO 2 -)

TKN = (approx.) NH 3 + Organic Nitrogen

Organic Nitrogen:

TKN - NH 3 = Organic Nitrogen

TN-TIN = Organic Nitrogen

Acronym Legend:

Total Inorganic Nitrogen (TIN)
Ammonia (NH 3)
Ammonium (NH 4 +)
Nitrate (NO 3 -)
Nitrite (NO 2 -)
Total Kjeldahl Nitrogen (TKN)
Total Nitrogen (TN)

Does Hach have a total organic nitrogen test?

Hach does not have a method for directly measuring total organic nitrogen.

There are two ways to determining the total organic nitrogen of a sample:

  • Measure the TKN (total Kjeldahl nitrogen) and subtract the ammonia results to calculate the total organic nitrogen or;
  • Measure the total nitrogen and subtract the total inorganic nitrogen result to calculate the total organic nitrogen.

Are Hach’s LCK reagents approved for enviromental compliance reporting?

Yes, - Hach LCK cuvette tests are officially approved for legally required consent limits. With the help of standard solutions and round-robin test solutions, they provide the assurance you need.
